This compact handheld drone jammer comes equipped with a built-in directional antenna and battery, allowing for up to 60 minutes of operation time. Ideal for military special operations teams, police, and security forces operating in various environments, this device is specifically designed to disrupt 2.4Ghz, 5.8G, 5.2G, 868/915MHz, GPS, Glonass, and Beidou satellite signals commonly used by commercial UAV drones. With an effective blocking range of up to 1500 meters, the jamming distance may vary depending on the specific drone model and its distance from the remote control.
The implementation of LED indicator lights on each separate band of the drone jammer significantly enhances the functionality and safety for both operators and potential targets.
Upon detection and interference, a drone will hover briefly before commencing a slow descent. This situation may become hazardous if the drone is transporting explosives, bio weapons, or similar items. Disabling the GPS L1 L2 L5 band will prompt the drone to immediately return to its take-off point and land there. This method allows for visual tracking and the potential capture of the drone operator, while ensuring that the dangerous cargo is removed from the protected area.
Basic Specifications: Jam Signal Type：Drones RC2.4G+RC5.8GHz+GPSL1+GPSL2/L5+RC868/915 or RC5.2G Signals
Output Power：Total 70W，10-20W each band
Jam Radius：up to 1500 meters
Power Supply：AC110-240V to DC24-28V
Power Supply：AC110-240V to DC24-28V
Cooling System：High efficiency aluminum alloy radiator+ cooling fans
Working Time：Build-in battery: 24V4.8Ah, Working Time:60 minutes
Product Size：260*260*135 mm
Product Weight: N.W:3.0kg
Package Contents：Jammer Host x 1, Battery Charger x1, AC Plug x1, Sight Rail x1. Sight x1(option), Tripod x1(option)

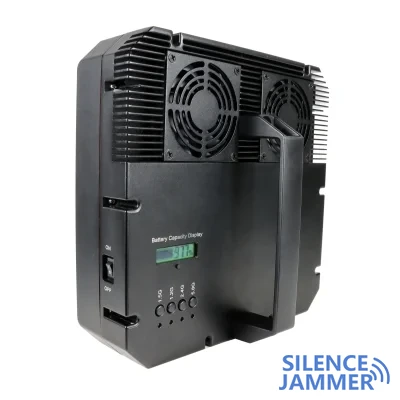

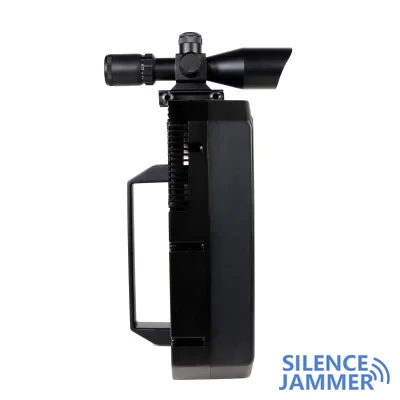

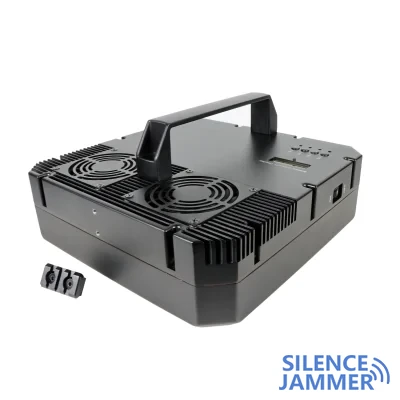

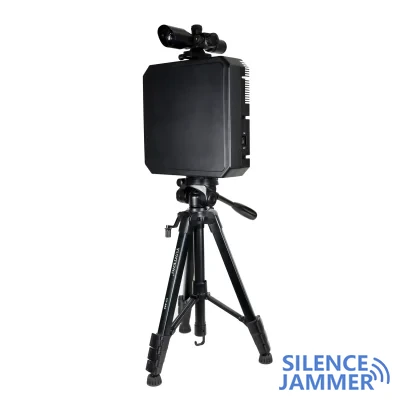

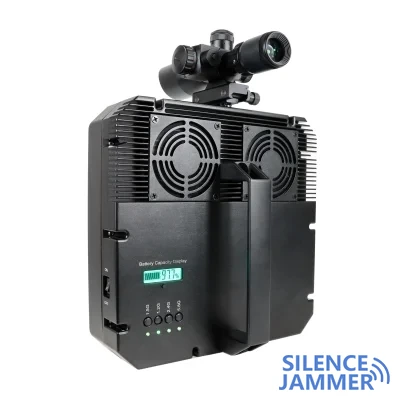

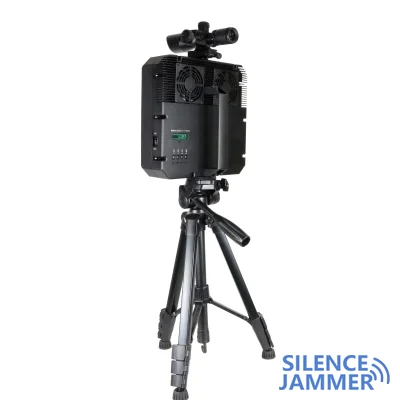

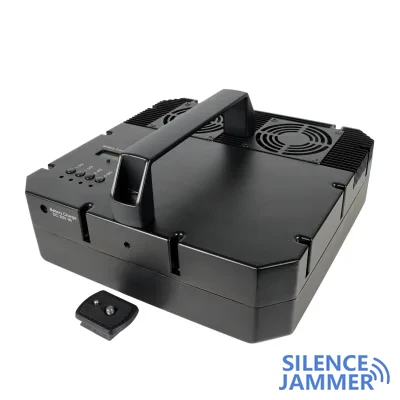

Precautions:The gadget can either be held in hand or attached to a camera tripod using a 1/4 inch hole. It boasts an output power of 70w and comes with integrated high gain panel directional antennas, ensuring protection within a range of 1500m. Each individual unit can disrupt up to 5 frequency bands simultaneously, with each band being distinct. The power status is indicated by LED lights. Moreover, it features a built-in battery that can operate continuously for around 60 minutes. The battery level and charging status are shown on an LED screen. Furthermore, it is furnished with a quadruple telescope for detecting and blocking drones from afar. To facilitate portability, a secure portable case is provided for storing the devices.
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | RC5.8G | 5725-5850MHz | 43dbm / 20W |
| 2 | RC2.4G | 2400-2500MHz | 43dbm / 20W |
| 3 | GPSL1 and Glonass L1 | 1560-1620MHz | 43dbm / 20W |
| 4 | RC868+915 | 868-915MHz | 43dbm / 20W |
| 5 | GPSL2+L5 | 1170-1280MHz | 43dbm / 20W |
| Option | RC5.2G | 5150-5350MHz | 43dbm / 20W |
| Option | GPSL2+L5 | 1170-1280MHz | 43dbm / 20W |
| Parameter Name | Parameter Details |
|---|---|
| Model | JAX-D5 |
| Color | Black |
| Power supply | AC adapter 50 to 60Hz, (AC110- 240V to DC24-28V) |
| Build-in battery | 24V/4.8Ah |
| Working Time | 60 minutes |
| Total Power | 70W |
| Shielding Radius | 300-1500 meters,Still depends on the distance of drone and remote control |
| Dimension | (length, width, height ) 260*260*135mm |
| Net weight | 3.0kg |
| Packing size | 420 x 380 x 210mm |
| Gross weight | 7kg |
| Warranty | one year from delivery date |
