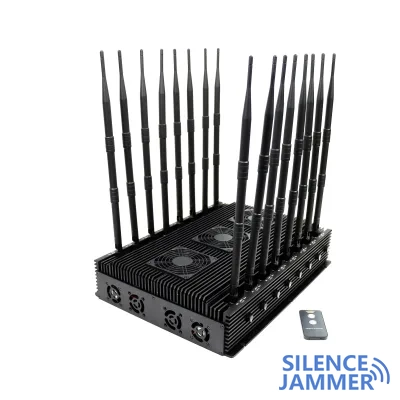

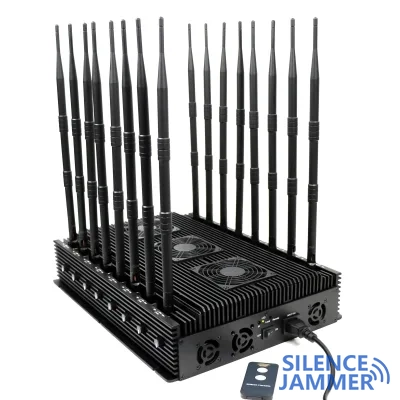

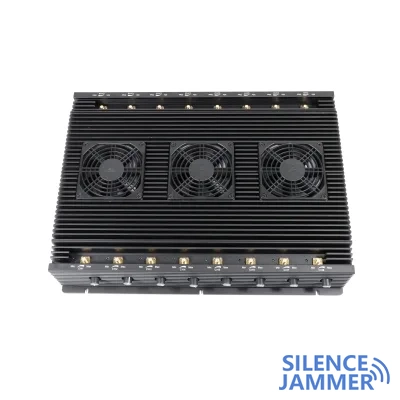

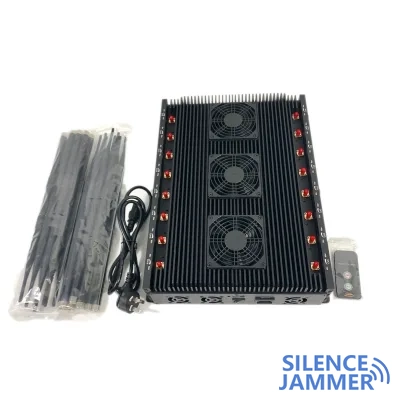

The latest design all-in-one powerful cellphone 5G 5G WIFI GPS UHF/VHF signal jammer is designed with 16 antennas which bring us a strong jamming ability. And it can not only cut off all 3G 4G 5G mobile phone signals, but also jam WiFi2.4G 5G CDMA450M GPS LOJACK UHF VHF LORA signals. And with Adjustable 110 watts, the jamming radius of this device can be up to 80 meters at most depending on the signal strength in the detailed place. Built-in 7 Cooling Fans non-stop working. LED pilot light show each band working status, 2-5meters with Infrared Remote Control Turn ON /OFF Power.
Advantages:16 chancel design, 2-10 watt each band High output power, Total up to: 110W, jamming up to 80m (Still depends on the strength signal in given area) External high gain 3-5dbi Omni-directional antennas all the TX frequency covered down link only Build-in AC110-240V to 24V adapter, Safe and easily use. Built-in good cooling system inside 7 fans, Working non-stopped 2-5meters with Infrared Remote Control Turn ON /OFF Power Can adjust or turn off any single band without influencing the other bands operation Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer) LED pilot light show each band working status
| Model | F16 |
| Jamming frequencies |
CDMA/868: 851-894MHz GSM900: 925-960MHz DCS/PCS: 1805-1880/1920-1990MHz 3G: 2110-2180MHz 4GLTE Low: 698-803/758-821MHz 4GLTE High: 2496-2690/2570-2690MHz WIFI2.4G/4G2300: 2400-2485/2300-2485MHz 4G1700: 1710-1780MHz WIFI5.8G: 5500-5900MHz WIFI5.2G: 5100-5500MHz GPS/Glonass L1: 1560-1610MHz GPSL2L3L4L5: 1170-1390MHz LORA: 900-960MHz VHF/LOJACK: 135-175MHz RC315: 315MHZ UHF/RC433: 400-470Mhz |
| Power supply | AC adapter 50 to 60Hz, (110-240V AC-24V DC) |
| Dimensions | 410x 310x 91mm（not Include Antenna） |
| net weight | 10kg |
| Total power | 110W |
| Shielding radius | (10-80) meters At -75dBm |
