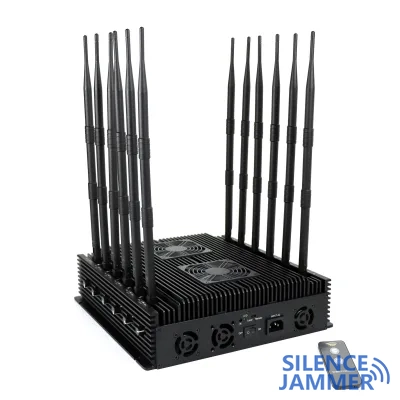

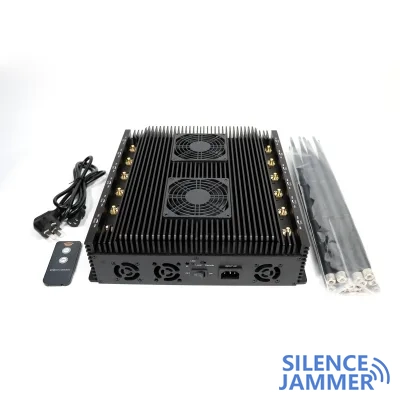

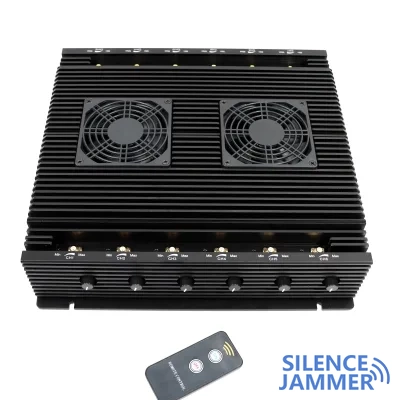

This new powerful cellphone WIFI GPS 5G signal jammer is designed with 12 antennas which bring us a strong jamming ability. And it can not only cut off all 3G 4G 5G mobile phone signals, but also block WiFi GPS LOJACK signals. And with Adjustable 90 watts high power, the jamming radius of this device can be up to 80 meters at most depending on the signal strength in the detailed place.Built-in 6 Cooling Fans non-stop working. 2-5meters with Infrared Remote Control Turn ON /OFF Power.
Advantages:12 chancel design, 3-10watts each band High output power, Total up to: 90W, jamming up to 80m (Still depends on the strength signal in given area) External high gain 2-3dbi Omni-directional antennas all the TX frequency covered down link only Built-in good cooling system inside 6 fans, Working non-stopped Built-in AC to DC adapter safer using 2-5meters with Infrared Remote Control Turn ON /OFF Power LED pilot light show each band working status . Can adjust power or turn off any single band without influencing the other bands operation Independent module design with frequency source of each channel, easy maintenance (if have any damaged frequency band, replace with new PCB directly, no need for professional equipment such as frequency analyzer) ODM and OEM orders are welcome, you can select any 12 bands for your require.
Model | F12 |
Jamming frequencies |
CDMA/868: 851-894MHz GSM/915/LORA: 900-960MHz DCS/PCS: 1805-1880/1920-1990MHz 3G: 2110-2180MHz 4GLTE Low: 698-798/738-821MHz 4GLTE High: 2496-2690/2570-2690MHz WIFI2.4G/4G2300: 2400-2485/2300-2485MHz WIF5.2G+5.8G: 5125-5850MHz GPS/Glonass L1: 1560-1610MHz RC433/UHF/CDMA450: 433/400-470MHz RC315: 315MHz VHF/LOJACK: 135-175MHz 4G1700: 1710-1780MHz(Option) GPSL2L3L4L5: 1170-1390MHz(Option) |
Power supply | Build-in AC adapter 50 to 60Hz, (AC110-240V IN, DC24V working) |
Dimensions | 320x 310x 91mm(not Include Antenna) |
Net weight | 7.0kg |
Total power | 83W |
Shielding radius | (10-80) meters At -75dBm |
